Equilibrating a TIPnP Water Box

This tutorial shows how to use the TIP3P and TIP4P force fields in ASE.

Note

Due to GitLab limit we have to cut the simulation steps in the tutorial. Please adjust the number of steps to your own system. We recommend multiply the number of steps we provided by 1000 for a realistic use.

import ase.units as units
from ase.build import molecule
from ase.calculators.tip3p import TIP3P
from ase.constraints import FixBondLengths
from ase.io.trajectory import Trajectory
from ase.md import Langevin

Let’s first create a starting point of the simulaiton. We will create a water box at 20 °C density.

atoms = molecule('H2O')
density = 0.9982  # denisty of water in g/cm^3 at 20°C
box_length = ((atoms.get_masses().sum() / units.mol) / (density * 1e-24)) ** (
    1 / 3
)  # box length in Å
atoms.set_cell((box_length, box_length, box_length))
atoms.center()
# Repeat the water molecule we just created to end up with a PBC cell
atoms *= (3, 3, 3)
atoms.set_pbc(True)

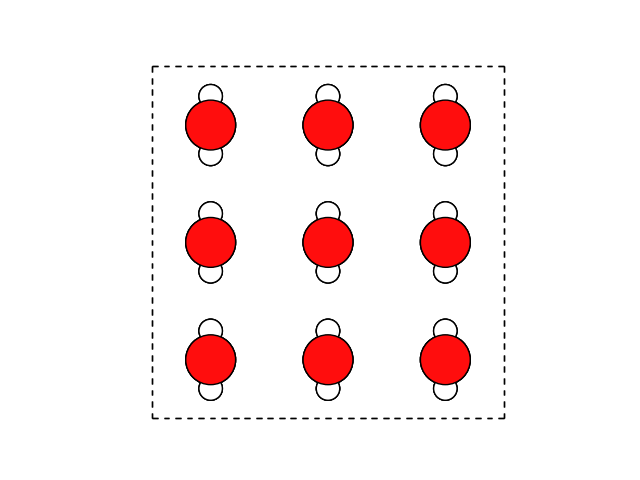

We can visualise the starting box

import matplotlib.pyplot as plt

from ase.visualize.plot import plot_atoms

fig, ax = plt.subplots()
plot_atoms(atoms, ax)
ax.set_axis_off()

Since the TIPnP type water interpotentials are for rigid molecules, there are no intramolecular force terms, and we need to constrain all internal degrees of freedom. For this, we’re using the RATTLE-type constraints of the The FixBondLengths class class to constrain all internal atomic distances (O-H1, O-H2, and H1-H2) for each molecule.

atoms.constraints = FixBondLengths(
    [(3 * i + j, 3 * i + (j + 1) % 3) for i in range(3**3) for j in [0, 1, 2]]
)
# RATTLE-type constraints on O-H1, O-H2, H1-H2.
tag = 'tip3p_27mol_equil'
atoms.calc = TIP3P(rc=4.5)  # set the calculator to be the TIP3P force field

For efficiency, we first equillibrate a smaller box, and then repeat that once more for the final equillibration. However, the potentials are not parallelized, and are mainly included for testing and for use with QM/MM tasks, so expect to let it run for some time. For illustration, we will equillibrate our system with the Langevin thermostat.

# Equillibrate in a small box first.
md = Langevin(
    atoms,
    1 * units.fs,
    temperature_K=293.15,  # 20 °C
    friction=0.01,
    logfile=tag + '.log',
)

traj = Trajectory(tag + '.traj', 'w', atoms)
md.attach(traj.write, interval=1)
md.run(4)  # please use 4000 to better equilibrate

# Repeat box and equilibrate further.
tag = 'tip3p_216mol_equil'
atoms.set_constraint()  # repeat not compatible with FixBondLengths currently.
atoms *= (2, 2, 2)
atoms.constraints = FixBondLengths(
    [
        (3 * i + j, 3 * i + (j + 1) % 3)
        for i in range(len(atoms) // 3)
        for j in [0, 1, 2]
    ]
)
atoms.calc = TIP3P(rc=7.0)
md = Langevin(
    atoms,
    2 * units.fs,
    temperature_K=293.15,  # 20 °C
    friction=0.01,
    logfile=tag + '.log',
)

traj = Trajectory(tag + '.traj', 'w', atoms)
md.attach(traj.write, interval=1)
md.run(2)  # please use 2000 to better equilibrate

Note

The temperature calculated by ASE is assuming all degrees of freedom are available to the system. Since the constraints have removed the 3 vibrational modes from each water, the shown temperature will be 2/3 of the actual value.

The procedure for the TIP4P force field is the same, with the following exception: the atomic sequence must be OHH, OHH, … . So to perform the same task using TIP4P, you simply have to import that calculator instead: from ase.calculators.tip4p import TIP4P, rOH, angleHOH

More info about the TIP4P potential: ase.calculators.tip4p
